High-quality filter
Adopt own brand oil-air separator, oil filter, air filter element, safe and reliable. Oil-air separator separate thoroughly which oil content less than 3 PPM; Air filter and oil filter are efficiency and long service life.
1. Air filter element
High efficient air filter element ensures the quality of the inlet air and safety of the air end, greatly improves the working life of air compressor.
2. Oil filter
Oil filter, have the impurity in the oil thoroughly filtrated, ensures the oil cleaning and extends the compressor life.
Adopt own brand oil-air separator, oil filter, air filter element, safe and reliable. Oil-air separator separate thoroughly which oil content less than 3 PPM; Air filter and oil filter are efficiency and long service life.

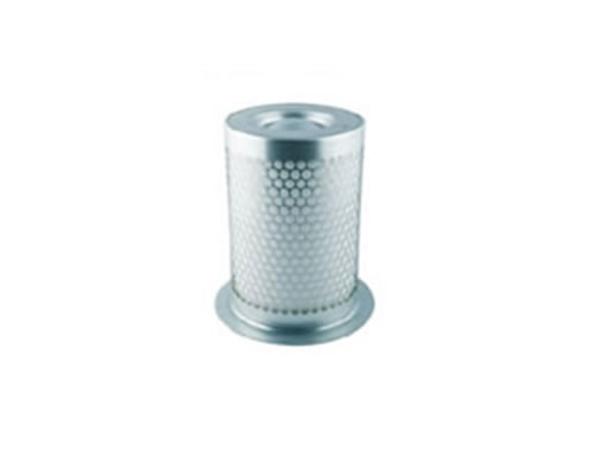

3. Oil-air separator
The highly efficient oil-air separator presents triple separation of centrifugal, gravity and filtration, leading the remaining oil less than 3ppm.
1st Separation: Centrifugal
The mixture of compressed air inside the compressor and the oil revolve in the separator under the centrifugal force.
2nd Separation: Gravity
After the centrifugal separation, the oil-air mixture punches the inside wall of oil-air vessel, and flow to the bottom of the vessel. At the bottom, the magnetic filter removes the iron powder and other small metals sucked together with air, preventing the scratch of separator.
3rd Separation: Filtration
It adopts the folding oil-air separator to increase the area.
With the fiber as the main body, the cylinder filter collects the atomizing lubricant from the air.
Applications of Air Compressor Filters
Jufeng air compressor is widely used in all kinds of industries around the world, including electronics, electricity, water, electricity, environmental protection, petroleum, chemical, mining, metallurgy, pharmaceutical, food, aviation, shipbuilding, military, scientific research, wood, textile, printing, glass, construction, building materials and other fields.
Air compressors can be grouped into three classifications: consumer grade, professional grade and industrial grade.
• Consumer grade air compressors can be described as a pancake or single-stage model. They're used for household tasks like inflating tires and inflatable products and possibly some low-load air tools like staplers and brad guns.
• Professional grade air compressors provide more power and higher pressurized air. They could be two-stage reciprocating models or rotary screw models and can provide more power to run several air tools at once with intermittent use.
• Industrial grade air compressors will be the workhorse of a manufacturing plant or the reliable power source on an oil rig. They are designed to provide a steady flow of compressed air for long periods of time and can take fluctuating surges in use typical in major manufacturing plants. These compressors are built with high-quality components that allow for customization to the specific environment to improve performance, energy efficiency and reliability.
Precautions of Air Compressor Filters
1. Srandard Power: 380V/50HZ/3PH, 415V/220V/60HZ and other voltage can be customized.
2. Starting method: 10A or below direct starting,15A or above star-delta srarting.
3. Working environment temperature: -5℃-45℃;
4. Driven method: Belt driven / Direct driven.
5. Welcome request & inquiry of customized the pressure up to 16 bar
6. The company on product improvement and reserves the right of design improvement parameters are subject to change without prior notice.
About the maintenance:
1st maintenance: After 500 hours of running
2nd and subsequent maintenance: Every 2000 to 2500 hours of running
